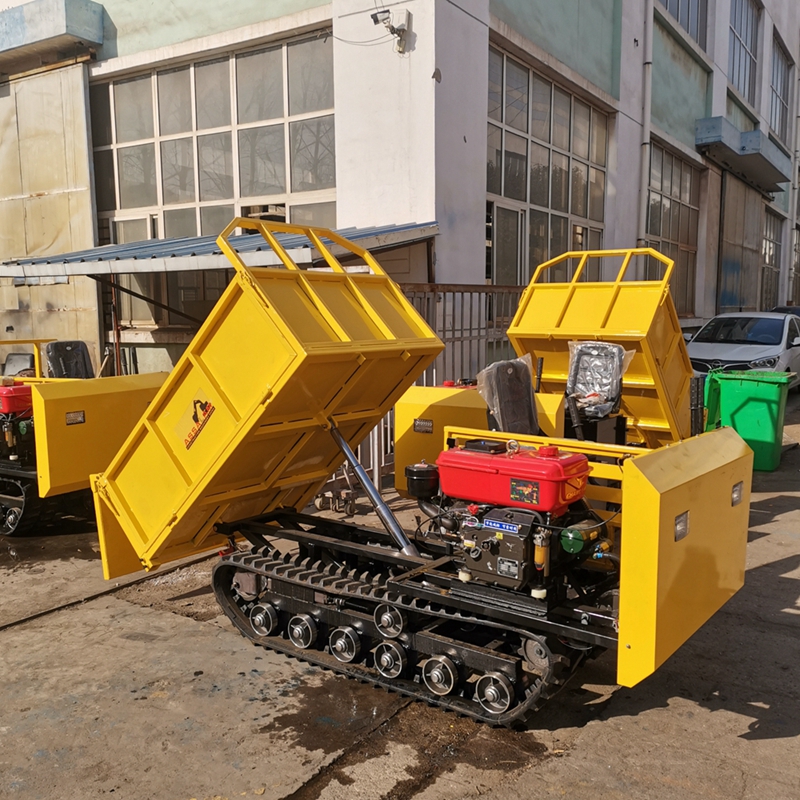

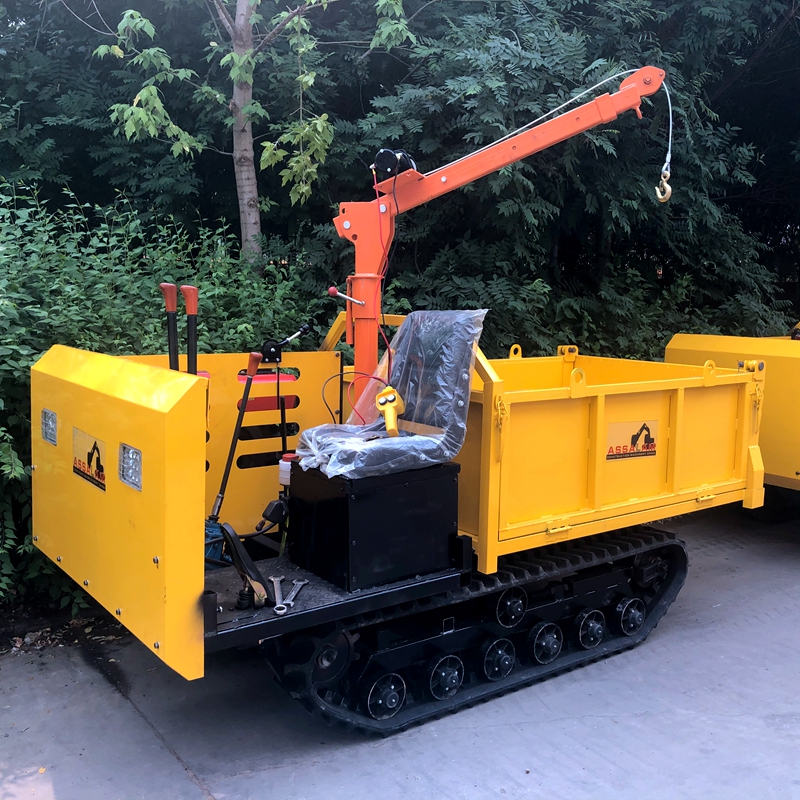

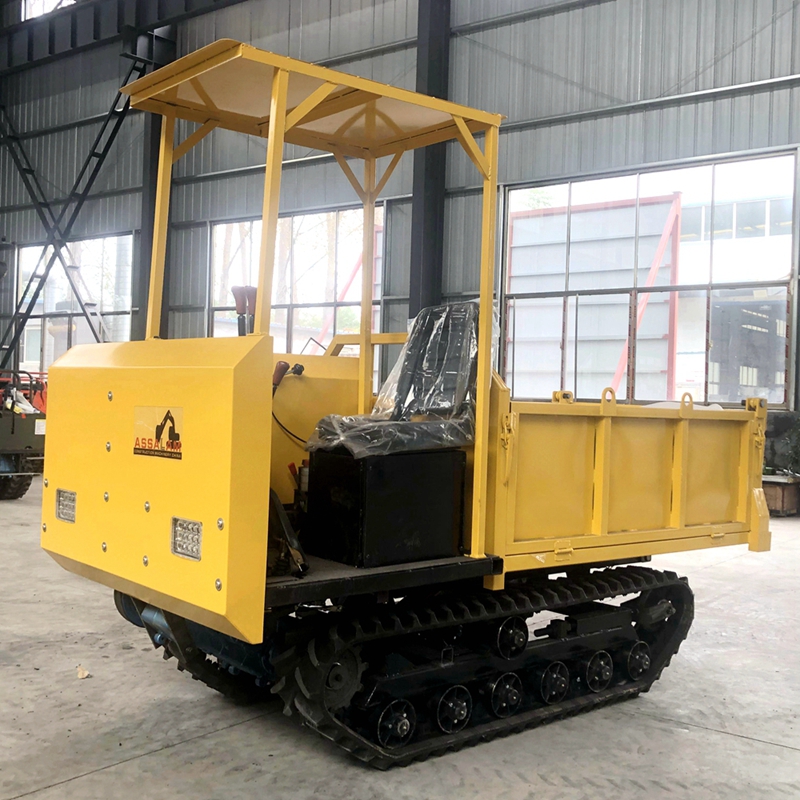

Introduction of mini crawler dumper

mini crawler dumper truck can adapt to complex and harsh road conditions such as rice fields, swamps, muddy field roads, rugged mountain roads, soft grass and deserts, slippery ice and snow etc. It is widely used in agriculture, forestry orchard transportation, freight yard loading, water conservancy construction, infrastructure engineering, and mining sites......
The crawler dumper produced by our factory are of low price and good quality. We can also provide customers with model customization services. The crawler dump truck produced by our factory are powered by single-cylinder, double-cylinder or four-cylinder engines, all of which are matched with famous brand engines and transmissions. They are equipped with air-cut brakes and hydraulic steering assist as standard. There are agricultural rubber tracks and engineering metal tracks to choose from.

Product Parameter

Model	HXLD10TW	HXLD15T	HXLD20T	HXLD30T
Dimensions	2400*1050*1350mm	2550*1200*1350mm	3200*1400*1400mm	3450*1600*1680mm
Container Size	1350*950*500mm	1450*1050*450mm	1800*1400*500mm	2000*1600*500mm
Track Size	230*72*46mm	230*72*46mm	350*90*46mm	350*90*56mm
Chassis width	0.85m	1.0m	1.55m	1.6m
Engine Model	Changfa or Koop	Changfa or Koop	Changfa or Quanchai	Quanchai or Changchai
Engine power	10HP	12HP	25HP	30HP
Drive mode	Diesel Engine
Track material	Agricultural rubber track
Starting mode	Electric start	Electric start	Electric start	Electric start
Loading capacity	1000kgs	1500kgs	2000kgs	3000kgs
Machine weight	750kgs	820kgs	1500kgs	1800kgs
Uphill angle	35°	35°	35°	35°
Walking speed	0-12km/h	0-12km/h	0-13km/h	0-13km/h

Model	HXLD35T	HXLD50T	HXLD60T	HXLD80T
Dimensions	3450*1600*1680mm	3600*1600*1550mm	3600*1600*1550mm	4200*2000*2200mm
Container Size	2200*1600*560mm	2200*1600*600mm	2200*1600*700mm	2600*2000*800mm
Track Size	350*90*56mm	320*90*56mm	320*90*56mm	450*90*70mm
Chassis width	1.8m	1.8m	2m	2m
Engine Model	Quanchai or Changchai	Huichai or Changchai	Yunnei or Yuchai	Yunnei or Yuchai
Engine power	30HP	52HP	87HP	110HP
Drive mode	Diesel Engine
Track material	Engineering rubber track
Starting mode	Electric start	Electric start	Electric start	Electric start
Loading capacity	3500kgs	5000kgs	6000kgs	8000kgs
Machine weight	2000kgs	2500kgs	3800kgs	5000kgs
Uphill angle	45°	45°	45°	45°
Walking speed	0-15km/h	0-15km/h	0-35km/h	0-35km/h

crawler mini dumepr applicable
